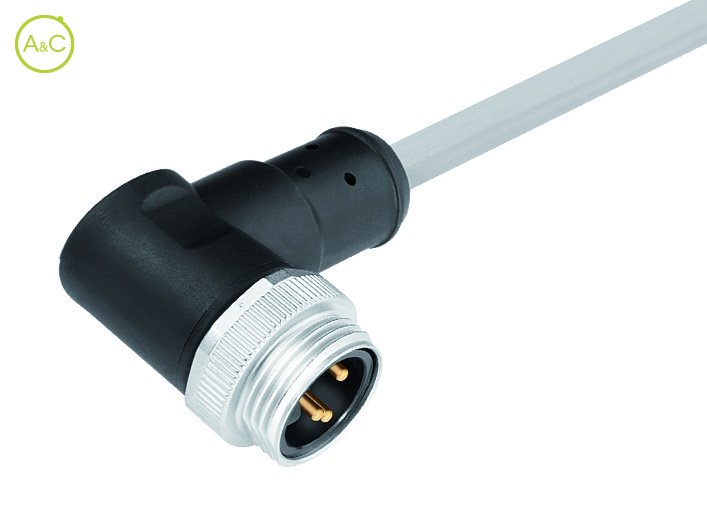

Male angled connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3+PE
- 4+PE
- 5+PE
| Article Number | 79 2455 20 03 |
| Connector Diameter | 26 mm |
| Number Of Contacts | 3+PE contacts |
| Connector Locking System | Screw (7/8"-16 UN) |
| Termination | Crimp |
| Wire Section | 1.5 mm² |
| Cable Length | 2 mm |
| Protection Degree | IP68 |
| Mating Cycles | >100 times |
| Upper Temperature | +80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 300 |
| Rated Impuls Voltage | 4000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 12 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PUR |
| Material Of Housing | PUR |
| Cable Diameter | 7,4 mm |
| Cable | 3 x 1,5 PUR mm² |
| Cable Jacket Material | PUR |
| Insulation Wire | TPM |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
