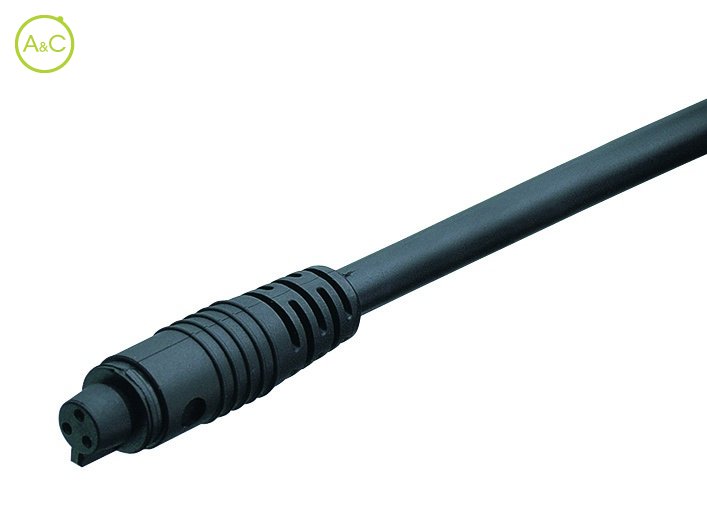

Female cable connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3
- 4
- 5

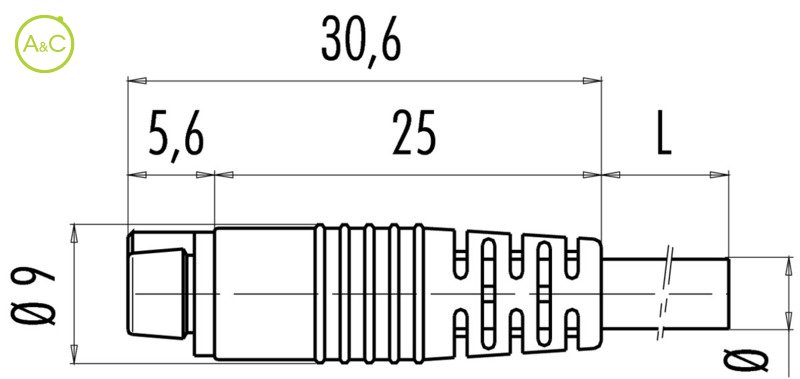

| Article Number | 79 9002 12 03 | 79 9002 15 03 |
| Connector Diameter | 9 mm | 9 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Snap-in | Snap-in |
| Termination | Moulded | Moulded |
| Wire Section | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP40 | IP40 |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +70 °C | +70 °C |
| Lower Temperature | -20 °C | -20 °C |
| Rated Voltage | 60 | 60 |
| Rated Impuls Voltage | 800 V | 800 V |
| Pollution Degree | 1 | 1 |
| Overvoltage Categorie | II | II |
| Material Group | II | II |
| Rated Current (40°) | 3 A | 3 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA |
| Material Of Housing | PUR | PUR |
| Cable Diameter | 4.5 mm | 4.5 mm |
| Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
