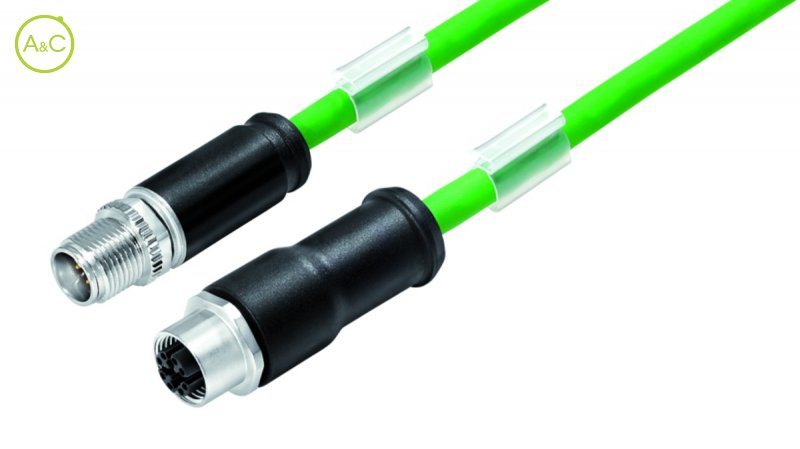

Connecting cable, male cable connector M12x1 & female cable connector M12x1
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 8
| Article Number | 79 9724 020 08 | 79 9724 050 08 | 79 9724 100 08 |
| Connector Diameter | 18 mm | 18 mm | 18 mm |
| Number Of Contacts | 8 contacts | 8 contacts | 8 contacts |
| Connector Locking System | Screw (M12-X) | Screw (M12-X) | Screw (M12-X) |
| Termination | Crimp, overmoulded on cable | Crimp, overmoulded on cable | Crimp, overmoulded on cable |
| Protection Degree | IP67 | IP67 | IP67 |
| Mating Cycles | >50 times | >50 times | >50 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C |
| Rated Voltage | 50 V AC 60 V DC | 50 V AC 60 V DC | 50 V AC 60 V DC |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II |
| Material Group | II | II | II |
| Rated Current (40°) | 0.5 A | 0.5 A | 0.5 A |
| Max. Contact Resistance | 10 mΩ | 10 mΩ | 10 mΩ |
| Material Of Contact | CuSn (Bronze), CuZn (Brass) | CuSn (Bronze), CuZn (Brass) | CuSn (Bronze), CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PA | PA | PA |
| Material Of Housing | PUR | PUR | PUR |
| Insulation Single Lead | PE | PE | PE |
| Single Lead Structure | 7x0,16 | 7x0,16 | 7x0,16 |
| Cable Sheath Ø | 6.2 mm | 6.2 mm | 6.2 mm |
| Conductor Resistance | 14,5/100m Ω/km | 14,5/100m Ω/km | 14,5/100m Ω/km |
| Bending Radius Cable Fixed | ≥25 mm | ≥25 mm | ≥25 mm |
| Bending Radius Cable Movable | ≥50 mm | ≥50 mm | ≥50 mm |
| Wire Gauge | 26/7 AWG | 26/7 AWG | 26/7 AWG |
| Material Housing Of Cable | PUR Green | PUR Green | PUR Green |
| Product sheet | Download product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
