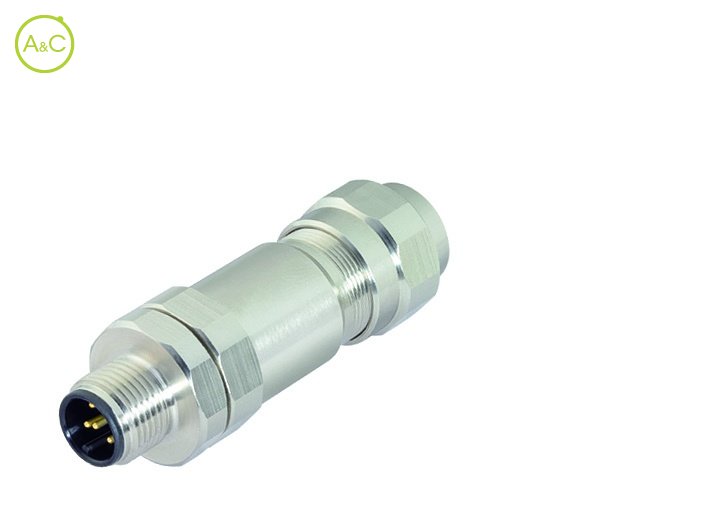

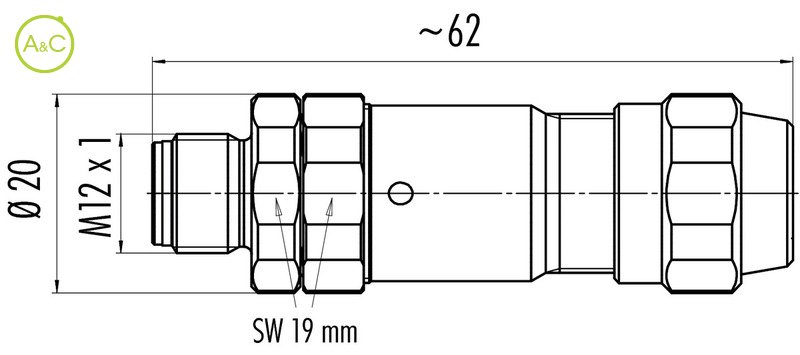

Male cable connector

Do you have any questions about this product?

More info on this brand:

Article Number	99 1429 995 04
Connector Diameter	20 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-B)
Termination	Screw
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated, stainless steel 1.4404
Cable Outlet	5,5-8,6 mm
Product sheet	Download product sheet

Article Number	99 1437 995 05
Connector Diameter	20 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-B)
Termination	Screw
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	Zinc diecasting nickel plated, stainless steel 1.4404
Cable Outlet	5,5-8,6 mm
Product sheet	Download product sheet

Characteristics differ between variants of a connector
