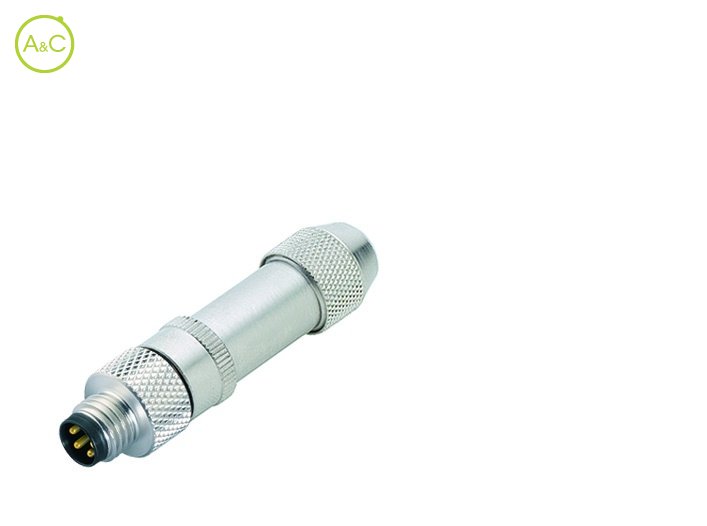

Male cable connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3
- 4
| Article Number | 99 3361 00 03 | 99 3361 25 03 |

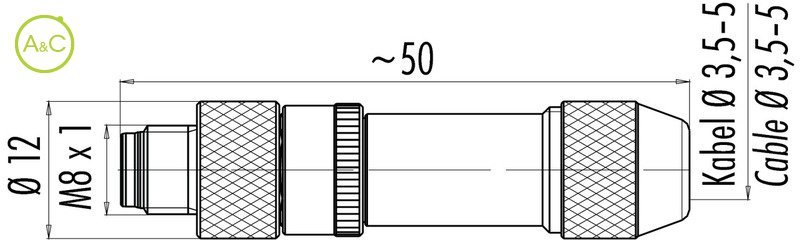

| Connector Diameter | 12 mm | 12 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Screw (M8) | Screw (M8) |
| Termination | Solder | Solder |
| Wire Section | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP67 | IP67 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 60 | 60 |
| Rated Impuls Voltage | 800 V | 800 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | III | III |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PA (UL 94 HB) | PA (UL 94 HB) |
| Material Of Housing | CuZn (Brass nickel plated) | CuZn (Brass nickel plated) |
| Cable Outlet | 3,5-5 mm | 2-3,5 mm |
| Wire Gauge | 24 AWG | 24 AWG |
| Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
