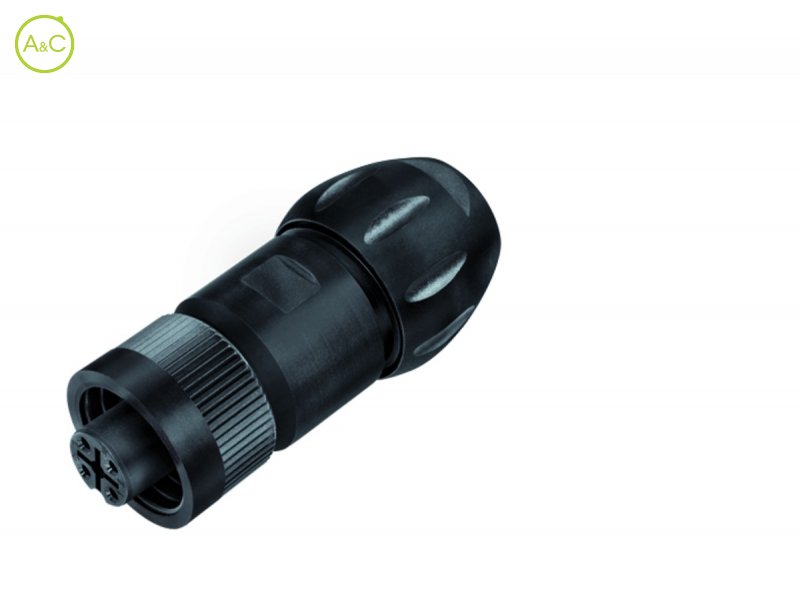

Female cable connector

Cable outlet 7-17 mm

99-4222-300-04

99-4222-300-04

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

More info on this brand:

Number Of Poles

3+PE
6+PE

Article Number	99 4222 300 04

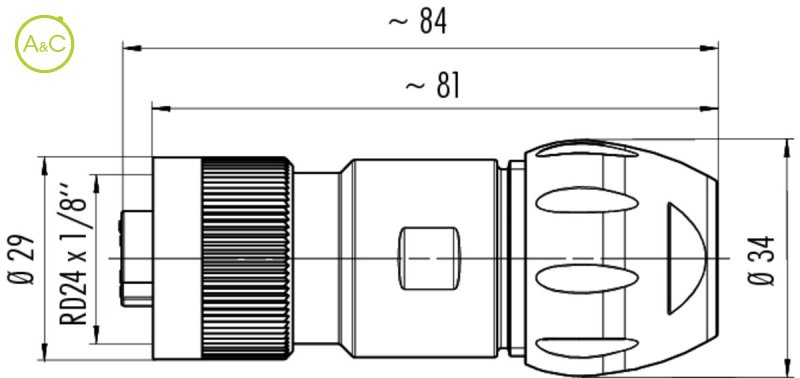

Connector Diameter	29 mm
Number Of Contacts	3+PE contacts
Connector Locking System	Bolted
Wire Section	0,5-2,5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+100 °C
Lower Temperature	-40 °C
Rated Voltage	400
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	16 A
Max. Contact Resistance	≤ 5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver)
Material Of Insert	PBT
Material Of Housing	PBT
Cable Outlet	7-17 mm
Wire Gauge	20-14 AWG
Product sheet	Download product sheet

Article Number	99 4226 300 07	99 4218 300 07	99 4202 300 07
Connector Diameter	29 mm	29 mm	29 mm
Number Of Contacts	6+PE contacts	6+PE contacts	6+PE contacts
Connector Locking System	Bolted	Bolted	Bolted
Wire Section	max. 0,75 mm²	0,34-1,5 mm²	0,14-1,5 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Rated Impuls Voltage	4000 V	4000 V	4000 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	10 A	10 A	10 A
Max. Contact Resistance	≤ 5 mΩ	≤ 5 mΩ	≤ 5 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)	CuSn (Bronze)
Plating	Ag (Silver)	Ag (Silver)	Ag (Silver)
Material Of Insert	PBT	PBT	PBT
Material Of Housing	PBT	PBT	PBT
Cable Outlet	7-17 mm	7-17 mm	7-17 mm
Wire Gauge	max. 20 AWG	22-16 AWG	26-16 AWG
Product sheet	Download product sheet	Download product sheet	Download product sheet

Characteristics differ between variants of a connector
