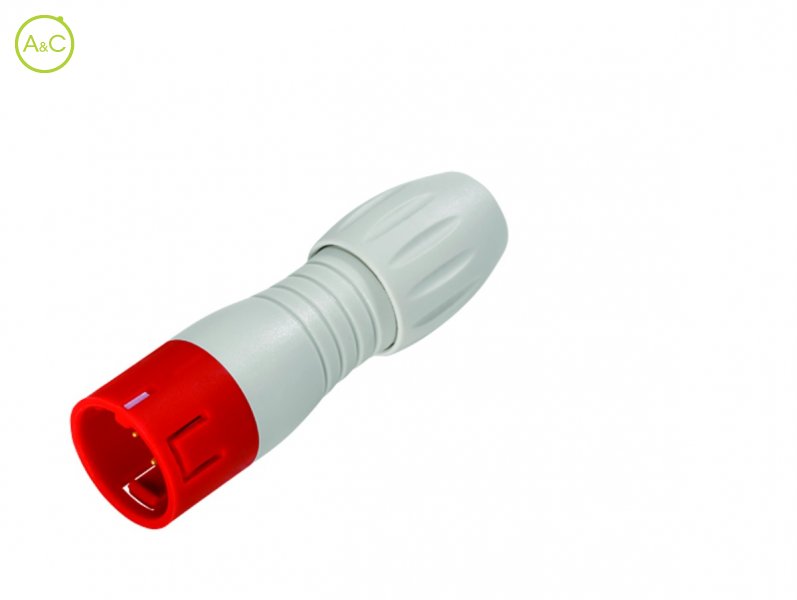

Male cable connector

Cable outlet 4-8
Color code red

99-9105-450-03

99-9105-450-03

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

More info on this brand:

Number Of Poles

3
5
8
12

Article Number	99 9105 450 03

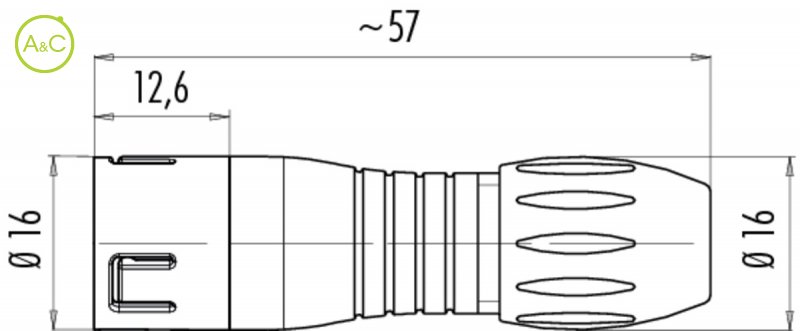

Connector Diameter	16 mm
Number Of Contacts	3 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP67
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	7 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Product sheet	Download product sheet

Article Number	99 9113 450 05
Connector Diameter	16 mm
Number Of Contacts	5 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.75 mm²
Protection Degree	IP67
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	5 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Product sheet	Download product sheet

Article Number	99 9125 450 08
Connector Diameter	16 mm
Number Of Contacts	8 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Product sheet	Download product sheet

Article Number	99 9133 452 12
Connector Diameter	19 mm
Number Of Contacts	12 contacts
Connector Locking System	Snap-in
Termination	Solder
Wire Section	0.25 mm²
Protection Degree	IP67
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	2
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 V-0)
Material Of Housing	PA (UL 94 V-0)
Product sheet	Download product sheet

Characteristics differ between variants of a connector
