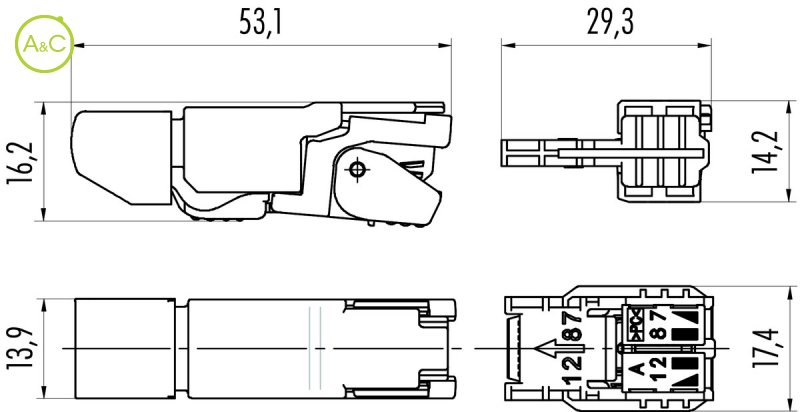

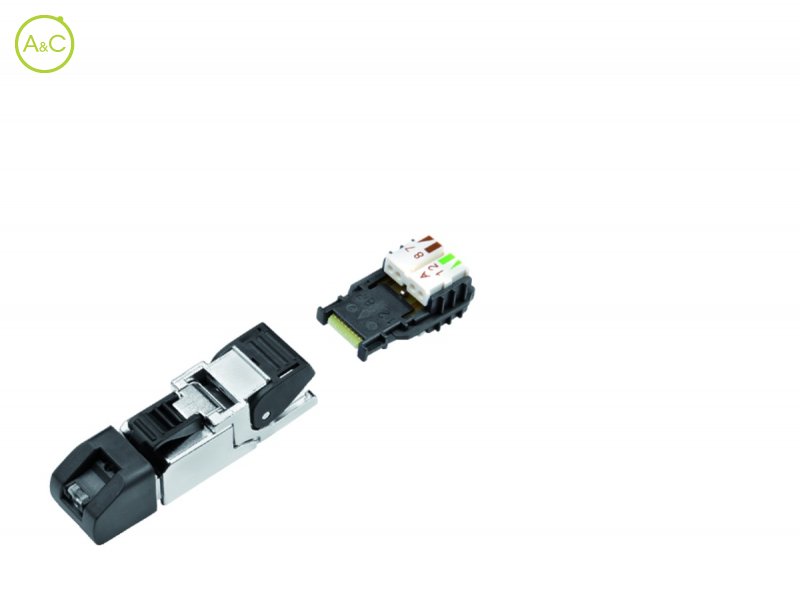

RJ45 male connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 8
| Article Number | 99 9687 805 08 | 99 9687 810 08 |
| Number Of Contacts | 8 contacts | 8 contacts |
| Connector Locking System | Snap-in lock | Snap-in lock |
| Termination | Penetration technology | Penetration technology |
| Protection Degree | IP20 | IP20 |
| Mating Cycles | >750 times | >750 times |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 50 DC | 50 DC |
| Pollution Degree | 2 | 2 |
| Overvoltage Categorie | III | III |
| Material Group | III a | III a |
| Rated Current (40°) | 1.3 A | 1.3 A |
| Max. Contact Resistance | 20 mΩ | 20 mΩ |
| Material Of Contact | Spring Steel | Spring Steel |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PC | PC |
| Material Of Housing | Zinc diecasting nickel plated | Zinc diecasting nickel plated |
| Cable Outlet | 5-9 mm | 5-9 mm |
| Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
