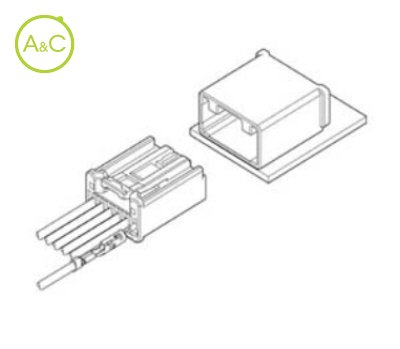

Female Connector Side Lock
Do you have any questions about this product?
More info on this brand:
JST
JST
Color
- Black
- White
| Article Number | AIT2PB-02G-1AK | AIT2PB-03B-1AK | AIT2PB-04G-1AK | AIT2PB-04B-1AK | AIT2PB-04M-1AK |
| Number Of Contacts | 2 | 3 | 4 | 4 | 4 |
| Upper Temperature | +105 °C | +105 °C | +105 °C | +105 °C | +105 °C |
| Lower Temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| General Description | 2.54mm Pitch Disconnectable Crimp Style (Wire to Wire) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Wire) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Wire) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Wire) | 2.54mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Automotive | Automotive | Automotive | Automotive | Automotive |
| Pitch / Style | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Rated Current (ac/dc) | 5 A | 5 A | 5 A | 5 A | 5 A |
| Rated Voltage (ac/dc) | 14 V | 14 V | 14 V | 14 V | 14 V |
| Remark* | Front-Load | Side-Load | Side-Load | Front-Load |
Characteristics differ between variants of a connector
0.64 unsealed low-profile connector series for use in a wide range of automotive applications.
Variations
There are multiple varieties of AIT-II Connectors which can satisfy your needs.
RoHS Compliant
