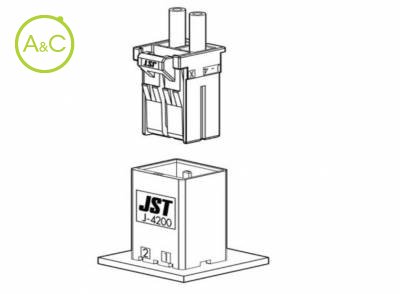

Top Entry Header THT

JFA CONNECTOR J4000 Series

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	BC02B-J42SK-GHXR	BC02B-J42SK-GHYR
Number Of Contacts	2	2
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	6.0mm/6.35mm Pitch Disconnectable Crimp Style	6.0mm/6.35mm Pitch Disconnectable Crimp Style
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	6.00/6.35 mm	6.00/6.35 mm
Rated Voltage (ac/dc)	600 V	600 V
Remark*	X Keying	Y Keying

Article Number	BC03B-J42SK-GHXR	BC03B-J42SK-GHYR
Number Of Contacts	3	3
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	6.0mm/6.35mm Pitch Disconnectable Crimp Style	6.0mm/6.35mm Pitch Disconnectable Crimp Style
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	6.00/6.35 mm	6.00/6.35 mm
Rated Voltage (ac/dc)	600 V	600 V
Remark*	X Keying	Y Keying

Article Number	BC06B-J42SK-GHXR	BC06B-J42SK-GHYR
Number Of Contacts	6	6
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	6.0mm/6.35mm Pitch Disconnectable Crimp Style	6.0mm/6.35mm Pitch Disconnectable Crimp Style
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	6.00/6.35 mm	6.00/6.35 mm
Rated Voltage (ac/dc)	600 V	600 V
Remark*	X Keying	Y Keying

Characteristics differ between variants of a connector

Compact and high current capacity connector. This connector realizes high-density mounting on PC board. High current capacity Center locking Housing lance Countermeasure for insertion of foreign substances Standards UL Recognized E60389 RoHS Compliant
