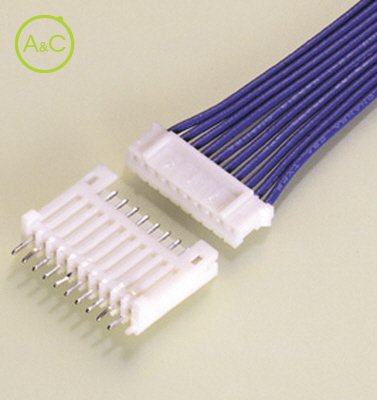

Top Entry Shrouded Header THT High box type

PH CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	BH2B-PH
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH3B-PH
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH4B-PH
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH5B-PH
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH6B-PH
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH7B-PH
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH8B-PH
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH9B-PH
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH10B-PH
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH11B-PH
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH12B-PH
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	BH13B-PH
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	100 V
Pcb Mount Style	Through-hole Technology (THT)

Characteristics differ between variants of a connector

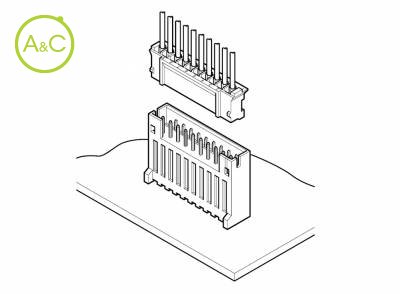

PH connector high-box type, with 17mm (.669") mounting height and with 4.5mm (.177") thickness. The header is designed to accept the PH crimp style or the KR insulation displacement connector receptacles. Interchangeability Designed to accept either PH or KR mating sockets. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75087 RoHS Compliant
