Socket Housing

BH CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	BHR-02(8.0)VS-1N	BHR-02VS-1	BHR-03VS-1
Number Of Contacts	2	2	3
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	4.0/8.0/12.0mm Pitch Disconnectable Crimp Style	4.0/8.0/12.0mm Pitch Disconnectable Crimp Style	4.0/8.0/12.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors	Printed Circuit Board Connectors	Printed Circuit Board Connectors
Pitch / Style	8.0 mm	4.0 mm	4.0 mm
Rated Current (ac/dc)	1.0 A	1.0 A	1.0 A
Rated Voltage (ac/dc)	600 V	600 V	600 V
Pcb Mount Style	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)	Surface Mount Technology (SMT)
Remark*	/	/	/

Article Number	BHR-03(4-3)VS-1N
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4.0/8.0/12.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	4.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	4 circuits 4.0 mm pitch header with circuit no.3 plugged up

Article Number	BHR-04VS-1
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4.0/8.0/12.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	4.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Article Number	BHR-05VS-1
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4.0/8.0/12.0mm Pitch Disconnectable Crimp Style
Connection Type	Printed Circuit Board Connectors
Pitch / Style	4.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V
Pcb Mount Style	Surface Mount Technology (SMT)
Remark*	/

Characteristics differ between variants of a connector

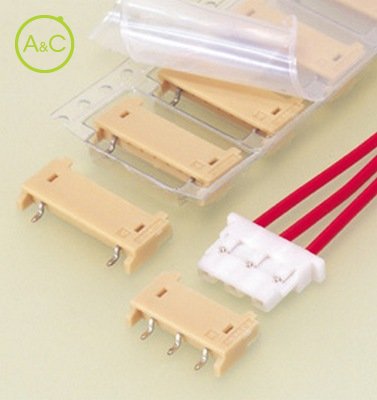

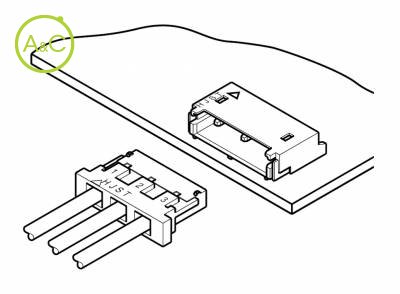

Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters. SMT configuration. It's crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber. Low profile Allows liquid crystal displays to be thinner, with only 3.2mm (.126") SMT configuration Shrouded headers are SMT style, suited for high density mounting. The headers feature reinforcing solder tabs to prevent lifting of the header during mating and unmating. Application to special wires Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber. Headers with locating bosses Headers with locating bosses are also available as an option. Housing lock also serves as polarizing device The housing lock, which is also designed to be a polarizing device, prevents both misinsertion and accidental disengagement due to vibration or shock. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
