Socket Housing

BHM CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	BHR-02VS-1
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Article Number	BHR-03VS-1
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Article Number	BHR-04VS-1
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Article Number	BHR-05VS-1
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	4mm/8mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	4.0/8.0 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	600 V

Characteristics differ between variants of a connector

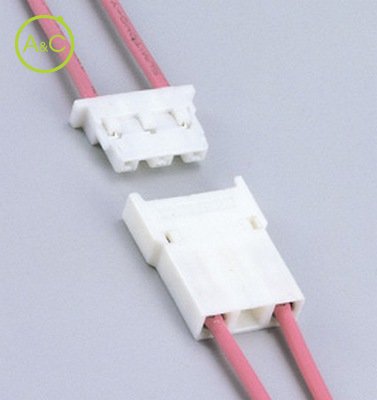

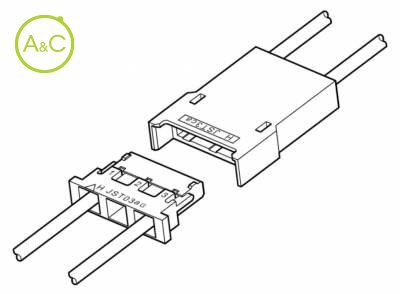

Wire-to-wire version connectors, designed for liquid crystal display back light lamps. Contact lances Contacts are secured in the housing by their spring action, thus fully shrouded. This helps improve the withstanding voltage. Box shaped housing Box shaped construction of the housing prevents distortion during mating and unmating of the housings. Withstanding voltage is also considered. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
