Housing
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
| Article Number | BHTR-02VS |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |

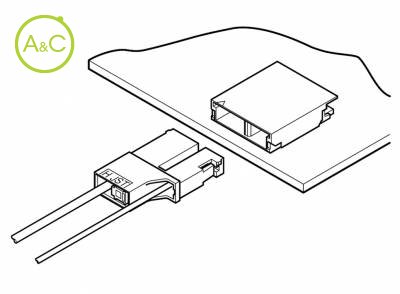

| General Description | 5.1mm Pitch Disconnectable Crimp Style (Wire to Board) |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 5.10 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 1,5 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector
Designed for connecting liquid crystal display backlight lamps to their starters.
Applicable to higher voltage (voltage rating: 1,500V) than the BH or BHS connectors.
Low profile. Only 2.8mm (.110") thick so that the mounting height will be 3.0mm (.118").
Housing is of 2-piece construction, to prevent the contact for the higher voltage side from being exposed.
High withstanding voltage
Conforming to IEC664-1 standards, the BHT connector is designed to have enough electrical creep distances at the high-voltage side. Thus, compared to the conventional power supply connector for liquid crystal display backlight lamps, high voltage is guaranteed.
Low profile
Only 2.8mm (.110") height.
Housing construction
Housing is of 2-piece construction, to prevent the contact for the higher voltage side from being exposed, while the lower voltage side is designed to be shorter for easy insertion of the contact even with thin wires.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
