Housing
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 3
- 6
- 12
| Article Number | BU03P-THR | BU03P-THR-1-K |
| Number Of Contacts | 3 | 3 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style | 2.5mm Pitch Disconnectable Crimp Style |
| Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 2 A | 3 2 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Remark* | 1-N type | 1-1 type |
Characteristics differ between variants of a connector

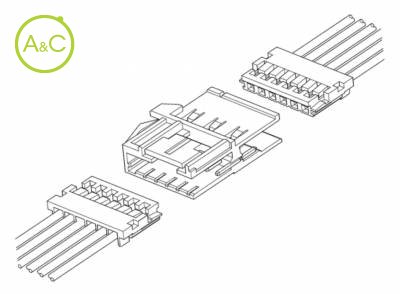

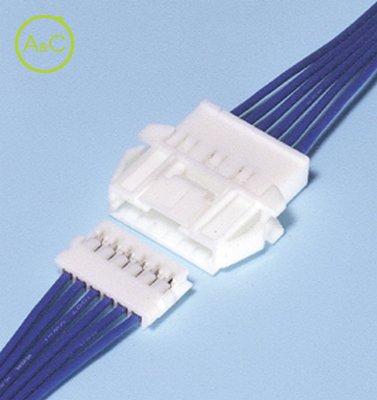

Matable with HR Receptacles. Both crimp style and insulation displacement HR connector receptacles can be accommodated by the THR connector.
Both crimp style and insulation displacement receptacles can be used
Both crimp style and insulation displacement HR connector receptacles can be accommodated by the THR connector.
Arm lock mechanism
An arm lock mechanism securely holds the plug and the receptacle together when they are connected. Releasing the lock is easy.
Mountable on a variety of panels
Due to our unique panel installation locking mechanisms, the housing can be easily installed on panels of various thickness without using tools.
RoHS Compliant
