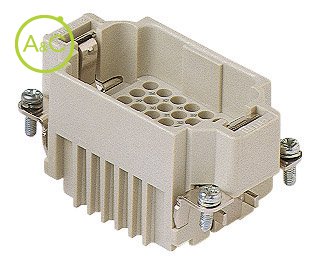

Inserts, 42P + PE, crimp connections
Do you have any questions about this product?
More info on this brand:
Ilme
- General
Article Number | CDDM 42 |
Pollution Degree | 3 |
Number Of Poles | 42 |
Connection Type | Crimp connection |
Contact Type | Male |
Required Crimp Contacts | CDMA 0.3, CDMA 0.5, CDMA 0.7, CDMA 1.0, CDMA 1.5, CDMA 2.5, CDMD 0.3, CDMD 0.5, CDMD 0.7, CDMD 1.0, CDMD 1.5, CDMD 2.5, CDM2D 0.3, CDM2D 0.5, CDM2D 0.7, CDM2D 1.0, CDM2D 1.5, CDM2D 2.5, CDMJD 0.3, CDMJD 0.5, CDMJD 0.7, CDMJD 1.0, CDMJD 1.5, CDMJD 2.5 |
Extra Information | Contact insert without contacts |
Ambient Lower Temperature | -40 °C |
Ambient Upper Temperature | 125 °C |
Required Housing |
C-type size 57.27 C7 size 57.27 Simplex size 57.27 V-Type size 57.27 BIG size 57.27 T-type size 57.27 T-type/W size 57.27 T-type/H size 57.27 T-type/C size 57.27 W-Type size 57.27 EMC size 57.27 Central Lever size 57.27 high protection IP68 LS-type size 57.27 COB size 57.27 |
Diameter Male Contact | 1.6 mm |
Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
Material Insert | Thermoplastic |
Max. Rated Current | 10 A |
Nominal Rated Voltage | 250 V |
Over Voltage Category | III |
Rated Surge Voltage | 4 kV |
Characteristics differ between variants of a connector
