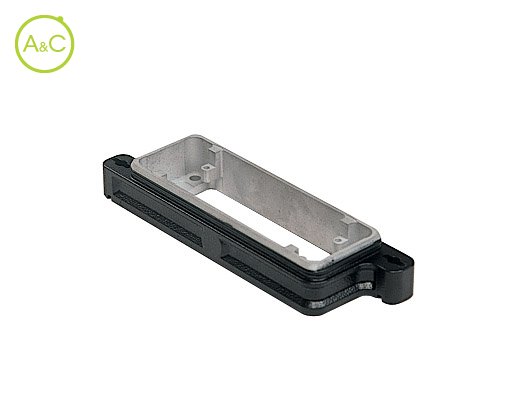

Bulkhead mounting housings, Bayonet locking
Do you have any questions about this product?
More info on this brand:
Ilme
Ilme
- General
| Article Number | CGI 16 B |
| Protection Degree | IP68 |
| Material Housing | Aluminium |
| Height | 29 mm |
| Length | 166 |
| Extra Information |
Corrosion resistant UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE |
| Locking Mechanism | Bayonet |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Below |
| Width | 58 mm |
Characteristics differ between variants of a connector
