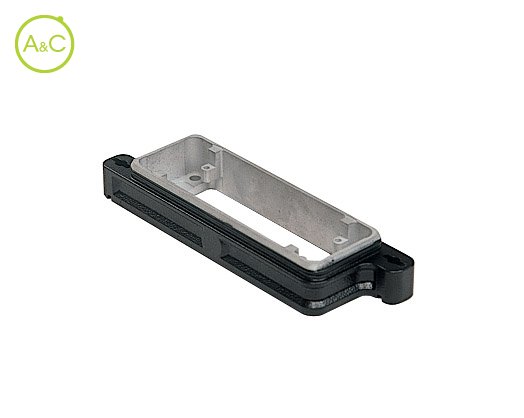

Bulkhead mounting housings, Bayonet locking

Do you have any questions about this product?

Download product sheet

More info on this brand:

Article Number	CGI 24 B
Protection Degree	IP68
Material Housing	Aluminium
Height	29 mm
Length	193
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux) + PE; CMSH 10+2 (aux) + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism	Bayonet
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Below
Width	58 mm

Characteristics differ between variants of a connector

Accessoires

Cover for bayonet locking

Frame for bulkhead mounting housings
