High Density D-Sub Crimp contacts

Stamped contacts

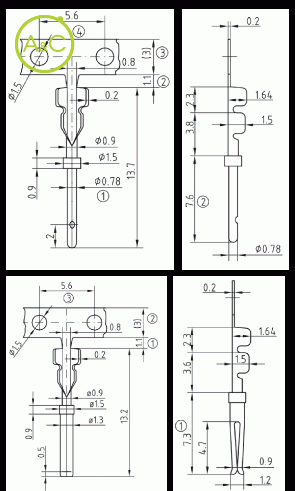

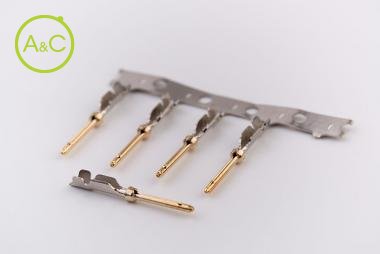

CHD15 24 GL G2T

CHD15 24 GL G2T

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Packaging

Reel, 500 contacts
Reel, 10000 contacts

Article Number	CHD15 24 SL G2T	CHD16 24 SL G2T
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	Cu alloy	Cu alloy
Gender	Male	Female
Awg Range	AWG 24-28	AWG 24-28
Awg Size	AWG 24-28	AWG 24-28
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 2 = 200 mating cycles	Class 2 = 200 mating cycles
Cross Section	0,22 - 0,08	0,22 - 0,08

Article Number	CHD15 24 GL G2T	CHD16 24 GL G2T
Contact Plating	Mating area: Au over Ni Termination area: Sn over Ni	Mating area: Au over Ni Termination area: Sn over Ni
Contact Material	Cu alloy	Cu alloy
Gender	Male	Female
Awg Range	AWG 24-28	AWG 24-28
Awg Size	AWG 24-28	AWG 24-28
Current Rating At 20°c	VDE: 3,5 A CSA: 2,5 A UL: 3	VDE: 3,5 A CSA: 2,5 A UL: 3
Quality Class	Class 2 = 200 mating cycles	Class 2 = 200 mating cycles
Cross Section	0,22 - 0,08	0,22 - 0,08

Characteristics differ between variants of a connector
