High Density crimp technology

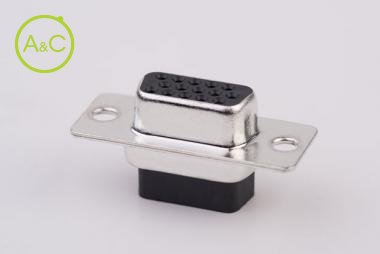

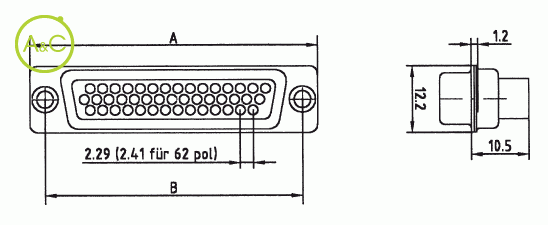

CHDT 15 P

CHDT 15 P

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

15
26
44
62
78

Article Number	CHDT 15 P	CHT 15 P
Number Of Contacts	15	15
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Housing Material	St. tinned	St. tinned
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	UL 94-V0 tested plastic	UL 94-V0 tested plastic
Mating/unmating Force Fully Loaded Connector	≤50	≤50
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60

Article Number	CHDT 26 P	CHT 26 P
Number Of Contacts	26	26
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Housing Material	St. tinned	St. tinned
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	UL 94-V0 tested plastic	UL 94-V0 tested plastic
Mating/unmating Force Fully Loaded Connector	≤84	≤84
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60

Article Number	CHDT 44 P	CHT 44 P
Number Of Contacts	44	44
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Housing Material	St. tinned	St. tinned
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	UL 94-V0 tested plastic	UL 94-V0 tested plastic
Mating/unmating Force Fully Loaded Connector	≤120	≤120
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60

Article Number	CHDT 62 P	CHT 62 P
Number Of Contacts	62	62
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Housing Material	St. tinned	St. tinned
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	UL 94-V0 tested plastic	UL 94-V0 tested plastic
Mating/unmating Force Fully Loaded Connector	≤170	≤170
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60

Article Number	CHDT 78 P	CHT 78 P
Number Of Contacts	78	78
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-55 °C	-55 °C
Housing Material	St. tinned	St. tinned
Insulation Resistance	≥10 MΩ	≥10 MΩ
Contact Resistance	≤10m	≤10m
Gender	Male	Female
Insulator Material	UL 94-V0 tested plastic	UL 94-V0 tested plastic
Mating/unmating Force Fully Loaded Connector	≤200	≤200
Air And Creepage Distance	min. 0,6 mm	min. 0,6 mm
Test Voltage U Eff	1000	1000
Working Voltage	60	60

Characteristics differ between variants of a connector
