Branch AWG 22 to 14
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- AWG 18 to 14
- AWG 22 to 18
| Article Number | CL-1814T |
| Upper Temperature | 105 Max °C |
| General Description | Insulation Displacement |
| Applicable Wire Size | 0.75 to 2.0 (AWG #18 to #14) mm² |
| Connection Type | Wire to Wire Connectors |
| Rated Current (ac/dc) | 7.0 15 A |
| Rated Voltage (ac/dc) | 300 V |
Characteristics differ between variants of a connector

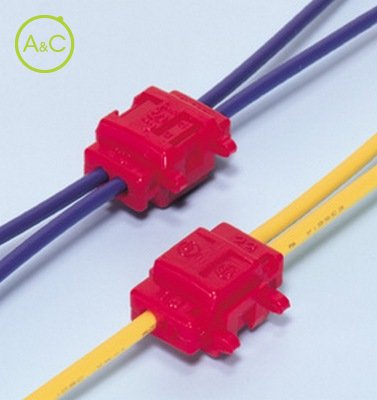

The CL is a low-voltage, insulation displacement connector that can be applied using simple tools.
A simple operation completes this insulation displacement splice
Wire conductors can be securely connected to the internal fork-shaped contacts of this connector by simply pressing the connector housing halves together with pliers. It is not necessary to strip the wires or to use special tools.
Superior insulation performance
The connector housing provides a highly effective insulation, and no further insulating operations are necessary.
Temporary wire holding mechanism
A temporary wire holding mechanism prevents the wire from moving or being improperly connected during wire connection.
Standards
UL Listed E42024
CSA Certified LR20812
EC directive 2002/95/EC (the RoHS Directive) - Compliant
