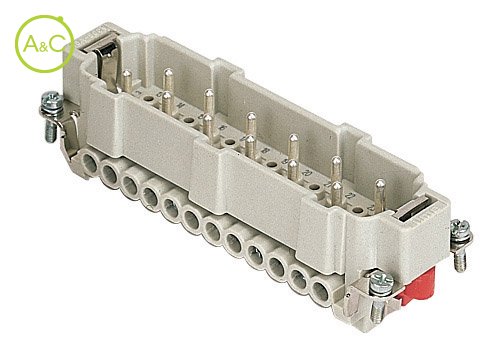

Inserts, 20 + 4(aux)P+ PE, screw terminal connection
Do you have any questions about this product?
More info on this brand:
Ilme
Ilme
- General
| Article Number | CMEM 10 T |
| Pollution Degree | 3 |
| Number Of Poles | 20 |
| Connection Type | Screw connection |
| Contact Type | Male |
| Extra Information |
With protective conductor With wire protection |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Pin Numbers | 1-24 |
| Min. Cross Section Without End Sleeve | 0.5 mm² |
| Max. Cross Section Without End Sleeve | 4 mm² |
| Required Housing |
C-type size 104.62 W-type 104.62 |
| Diameter Male Contact | 2.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 16 A |
| Nominal Rated Voltage | 830 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 8 kV |
Characteristics differ between variants of a connector
