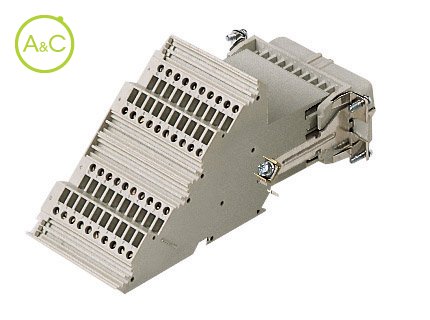

Inserts, 40P + PE, Screw terminal connection

Do you have any questions about this product?

Download product sheet

More info on this brand:

Article Number	CTF 40 L*
Pollution Degree	3
Number Of Poles	40
Connection Type	Screw connection
Contact Type	Female
Remark*	Only for bulkhead mounted housings
Extra Information	With protective conductor
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section With End Sleeve	0.75 mm²
Max. Cross Section With End Sleeve	2.5 mm²
Required Housing	C-type size 77.27 C7 size 77.27 Simplex size 77.27 V-type size 77.27 W-Type size 77.27 EMC size 77.27 Central Lever size 77.27 LS-type size 77.27
Diameter Male Contact	1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	10 A
Nominal Rated Voltage	250 V
Over Voltage Category	III
Rated Surge Voltage	4 kV

Article Number	CTF 40 R*
Pollution Degree	3
Number Of Poles	40
Connection Type	Screw connection
Contact Type	Female
Remark*	Only for bulkhead mounted housings
Extra Information	With protective conductor
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section With End Sleeve	0.75 mm²
Max. Cross Section With End Sleeve	2.5 mm²
Required Housing	C-type size 77.27 C7 size 77.27 Simplex size 77.27 V-type size 77.27 W-Type size 77.27 EMC size 77.27 Central Lever size 77.27 LS-type size 77.27
Diameter Male Contact	1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	10 A
Nominal Rated Voltage	250 V
Over Voltage Category	III
Rated Surge Voltage	4 kV
