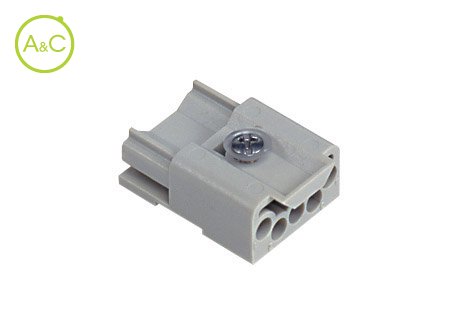

Inserts 2 pole fibre optics + 4 poles, crimp connections

  • without electro-optical interface for fixed enclosures
  • Socket inserts for female contacts

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet
  • General
Article Number CXL SF
Pollution Degree 3
Number Of Poles 4
Contact Type Female
Required Crimp Contacts CDFA 0.3, CDFA 0.5, CDFA 0.7, CDFA 1.0, CDFA 1.5, CDFA 2.5, CDFD 0.3, CDFD 0.5, CDFD 0.7, CDFD 1.0, CDFD 1.5, CDFD 2.5
Extra Information Contact insert without contacts
With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 70 °C
Diameter Male Contact 1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 10 A
Nominal Rated Voltage 25 V
Over Voltage Category II
Rated Surge Voltage 0.8 kV
Characteristics differ between variants of a connector
