Top Entry Type Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
- General
| Article Number | DM-3D4-B3200 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |

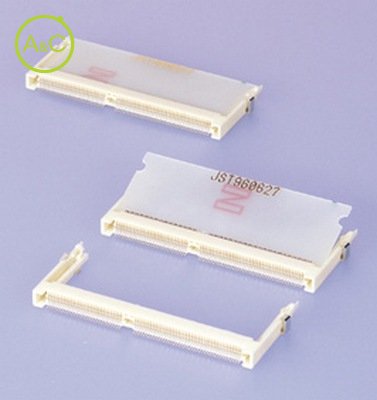

| General Description | 0.8mm Pitch Socket for S.O.DIMM |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.80 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

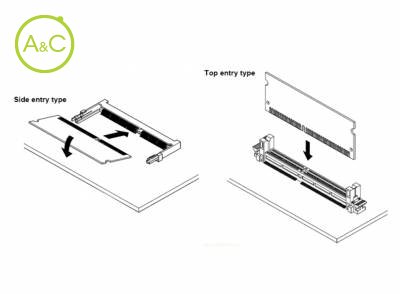

Standardized by the JEDEC (MO-160). The DM connector is the straight type of the DIMM socket, applicable to the module PC board whose operating voltage is 3.3V.
Extremely small space for mounting on the board
The DM connector is applicable to 64Bit data bus, with the same size as the 4Byte S.O.DIMM, and half size of the 8Byte DIMM.
Standards
UL Recognized E60389
RoHS Compliant
