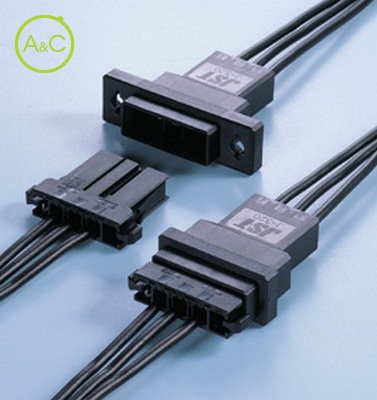

Tab Housing Free Hanging Double Row
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 6
- 12
| Article Number | F32MDF-06V-KXX | F32MDF-06V-KXY | F32MDF-06V-KYY |
| Number Of Contacts | 6 | 6 | 6 |
| Upper Temperature | +105 °C | +105 °C | +105 °C |
| Lower Temperature | -55 °C | -55 °C | -55 °C |

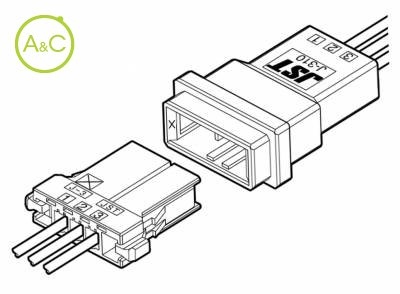

| General Description | 5.08mm Pitch Disconnectable Crimp Style (Wire to Wire) | 5.08mm Pitch Disconnectable Crimp Style (Wire to Wire) | 5.08mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Factory Automation Connectors | Factory Automation Connectors | Factory Automation Connectors |
| Pitch / Style | 5.08 mm | 5.08 mm | 5.08 mm |
| Rated Current (ac/dc) | 15 A | 15 A | 15 A |
| Rated Voltage (ac/dc) | 600 V | 600 V | 600 V |
| Remark* | XX Keying | XY Keying | YY Keying |
Characteristics differ between variants of a connector
