IDC Connectors

With flat housing

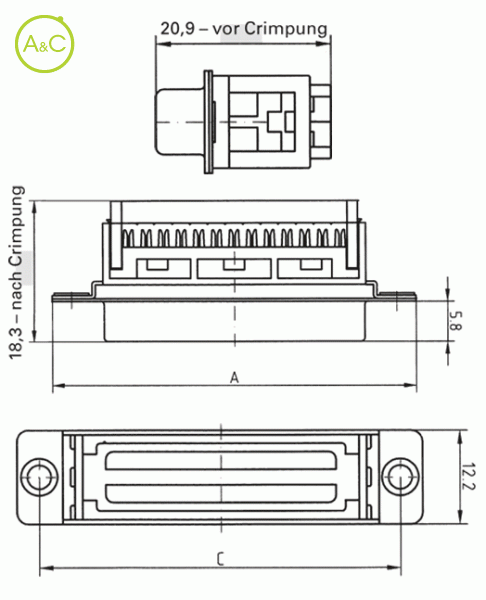

IDT 09 154 G3

IDT 09 154 G3

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

9
15
25
37

Article Number	IDT 09 154 G3	IT 09 164 G3
Number Of Contacts	9	9
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request Zinc plated metal housing	With strain relief With threaded rivet on request Zinc plated metal housing
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	IDT 15 154 G3	IT 15 164 G3
Number Of Contacts	15	15
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request Zinc plated metal housing	With strain relief With threaded rivet on request Zinc plated metal housing
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	IDT 25 154 G3	IT 25 164 G3
Number Of Contacts	25	25
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request Zinc plated metal housing	With strain relief With threaded rivet on request Zinc plated metal housing
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Article Number	IDT 37 154 G3	IT 37 164 G3
Number Of Contacts	37	37
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	With strain relief With threaded rivet on request Zinc plated metal housing	With strain relief With threaded rivet on request Zinc plated metal housing
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	IDC	IDC
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Usable Cable	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A	AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A

Characteristics differ between variants of a connector
