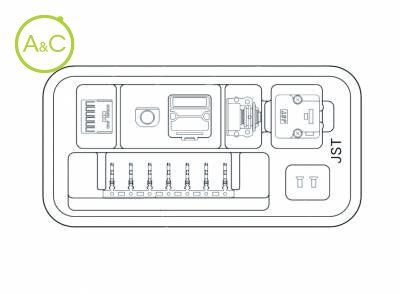

Connector Kit for JFA Connector J1700 series

JFA CONNECTOR J1700 series

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Cable Diameter

Article Number	J17-06FMH-6KL-1M-CF
Number Of Contacts	6
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.0mm Pitch Connector Kit for Motor
Connection Type	Factory Automation Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Remark*	Waterproof
Extra Information	Nominal: M

Article Number	J17-06FMH-6KL-1S-CF
Number Of Contacts	6
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.0mm Pitch Connector Kit for Motor
Connection Type	Factory Automation Connectors
Pitch / Style	2.00 mm
Rated Current (ac/dc)	5 A
Rated Voltage (ac/dc)	250 V
Remark*	Waterproof
Extra Information	Nominal: S

Article Number	J17-06FMH-7KL-1M-CF	J17-06FMH-7KL-1S-CF
Number Of Contacts	6	6
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	2.0mm Pitch Connector Kit for Motor	2.0mm Pitch Connector Kit for Motor
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	2.00 mm	2.00 mm
Rated Current (ac/dc)	5 A	5 A
Rated Voltage (ac/dc)	250 V	250 V
Remark*	Waterproof	Waterproof
Extra Information	Nominal: M	Nominal: S

Characteristics differ between variants of a connector

6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
