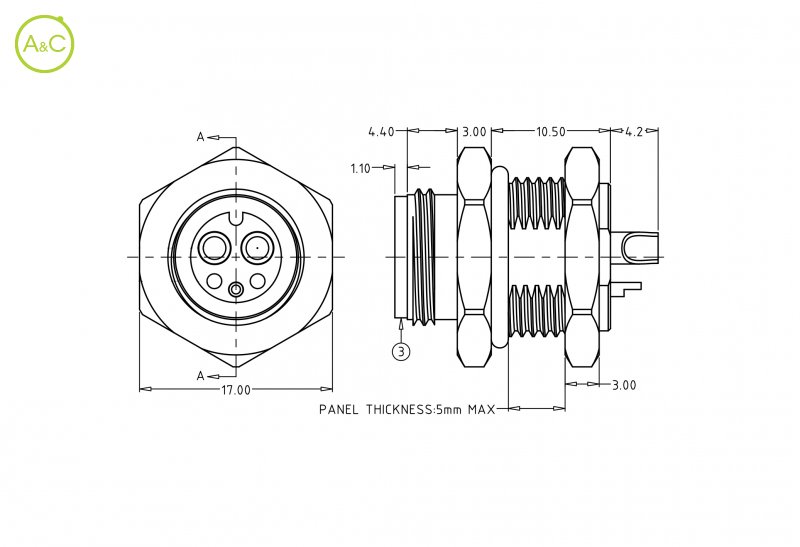

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Higo
Higo
Number Of Poles
- 5 (2+3)
| Article Number | L513AM C 02 00 0000 |
| Color | Black |
| Connector Diameter | 13 mm |
| Protection Degree | IP67 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Phosphor bronze |
| Remark | Other cable length/type on request |
| Rated Current | 20 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
| Contact Type | Solder cup contacts |
Characteristics differ between variants of a connector
