Screw Terminals / Binding Posts

M6111

M6111

M6111

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

More info on this brand:

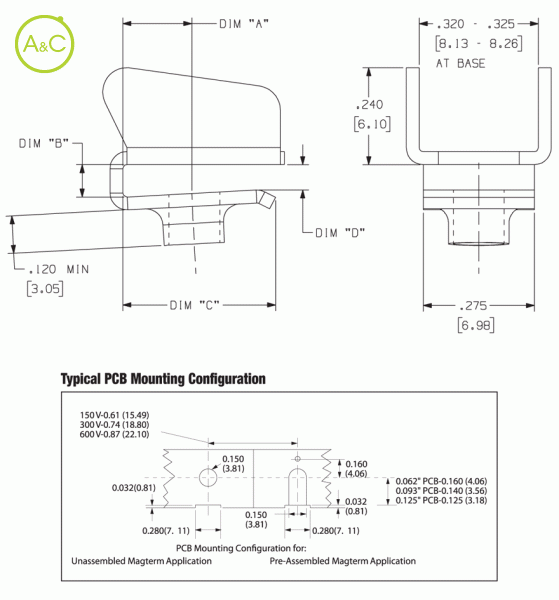

Dimension "a"

0.145" (3.68mm)
0.160" (4.06mm)

Article Number	M6112
Remark*	Screws and wire must be ordered separately
Packaging	Loose
Dim A	0.145" (3.68mm)
Dim B	0.102"/0.107" (2.59mm/2.72mm)
Dim C	0.365" (9.27mm)
Dim D	0.081"/0.091" (2.06mm/2.31mm)
Material Thickness / Type	0.032" (0.81mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	30 Amperes
Pieces Per Reel (loose Part No.)	NA
Product sheet	Download product sheet

Article Number	M6111
Remark*	Screws and wire must be ordered separately
Packaging	Loose
Dim A	0.160" (4.06mm)
Dim B	0.070"/0.075" (1.78mm/1.91mm)
Dim C	0.380" (9.65mm)
Dim D	0.048"/0.058" (1.22mm/1.47mm)
Material Thickness / Type	0.032" (0.81mm) C26000 Brass
Standard Finish	100% Tin over Copper
Current Rating	30 Amperes
Pieces Per Reel (loose Part No.)	NA
Product sheet	Download product sheet

Characteristics differ between variants of a connector
