Mixed layout

Crimp contacts

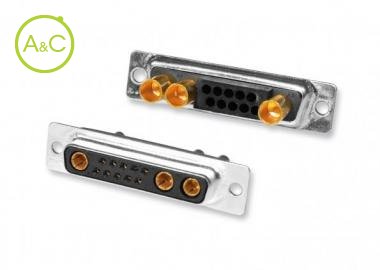

MDT3W3P

MDT3W3P

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

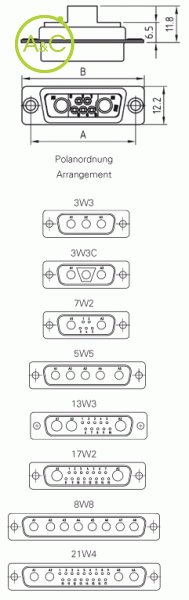

Contact Arrangement

3W3
3W3C
5W5
7W2
8W8
13W3
17W2
21W4

Article Number	MDT3W3P	MT3W3S
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	/	/
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Article Number	MDT3W3CP	MT3W3CS
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	/	/
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Article Number	MDT5W5P	MT5W5S
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	/	/
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Article Number	MDT7W2P	MT7W2S
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Article Number	MDT8W8P	MT8W8S
Upper Temperature	High power contacts: +125 °C Coax contacts: +125 °C	High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	High power contacts: -55 °C Coax contacts: -55 °C	High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	/	/
Insulation Resistance	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ	High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ
Contact Resistance	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	/	/
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	/	/
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	/	/
Air And Creepage Distance	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Article Number	MDT13W3P	MT13W3S
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Article Number	MDT17W2P	MT17W2S
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Article Number	MDT21W4P	MT21W4S
Upper Temperature	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C	Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C
Lower Temperature	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C	Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C
Housing Material	Signal contacts: St. tinned	Signal contacts: St. tinned
Insulation Resistance	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ	Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ
Contact Resistance	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m	Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m
Gender	Male	Female
Insulator Material	Signal contacts: PBT GF UL 94-V0	Signal contacts: PBT GF UL 94-V0
Retaining Clip Material	High power contacts: CuBE Coax Contacts: CuBE	High power contacts: CuBE Coax Contacts: CuBE
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)	Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact)
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d)	Signal contacts: ≤ 50	Signal contacts: ≤ 50
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d)	Signal contacts: ≤ 83	Signal contacts: ≤ 83
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d)	Signal contacts: ≤ 123	Signal contacts: ≤ 123
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d)	Signal contacts: ≤ 167	Signal contacts: ≤ 167
Air And Creepage Distance	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm	Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm

Characteristics differ between variants of a connector
