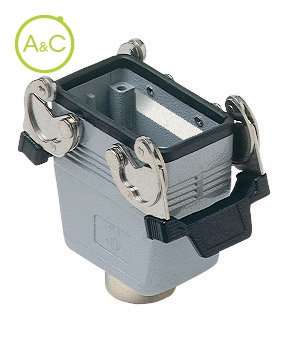

Hoods with 2 levers and gasket, high construction

Top entry
Aluminium, Metric entry

MMAV 03 G25

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xM25
1xM32

Article Number	MMAV 03 G25
Protection Degree	IP66
Material Housing	Aluminium
Height	91 mm
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	59 mm

Article Number	MMAV 03 G32
Protection Degree	IP66
Material Housing	Aluminium
Height	91 mm
Length	73
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 3+2P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	59 mm

Characteristics differ between variants of a connector

Accessoires

Covers with 4 pegs and gasket
