Hoods with 4 pegs

Top entry
Aluminium, Metric entry

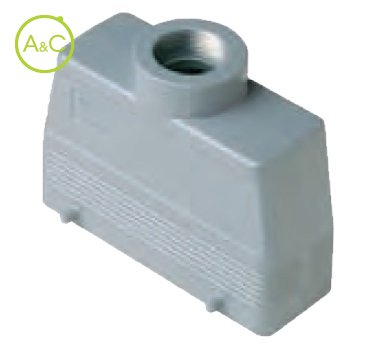

MMV 16.25

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xM25
1xM32
1xM40

Article Number	MMV 16.25*
Protection Degree	IP66
Material Housing	Aluminium
Height	68 mm
Remark*	Can only be used with a complete cable gland
Length	120
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Article Number	MMV 16.32
Protection Degree	IP66
Material Housing	Aluminium
Height	68 mm
Remark*	/
Length	120
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Article Number	MMV 16.40
Protection Degree	IP66
Material Housing	Aluminium
Height	69.5 mm
Remark*	/
Length	120
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CME 10+2 (aux)P + PE; CMCE 16+2 (aux)P + PE; CME 16+2 (aux)P+ PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Characteristics differ between variants of a connector
