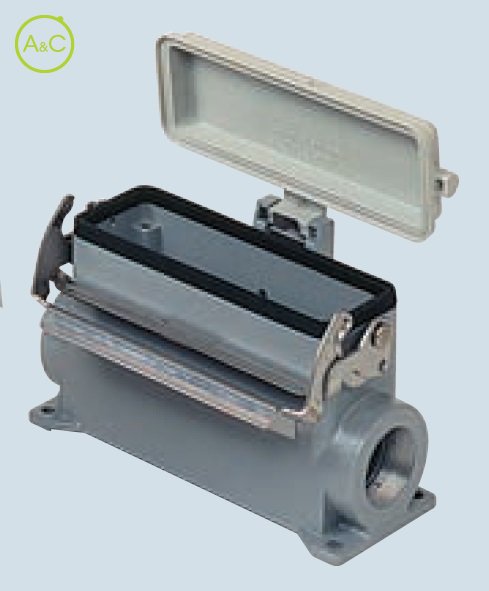

Surface mounting housings, high construction

With single lever in stainless steel and plastic cover
Aluminium, Metric entry

MVAP 10 LP32

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Entry

1xM32
1xM40
2xM32
2xM40

Article Number	MVAP 10 LP32
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MVAP 10 LP40
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MVAP 10 LP232
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	MVAP 10 LP240
Protection Degree	IP65
Material Housing	Aluminium
Height	73 mm
Length	93.5
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Characteristics differ between variants of a connector
