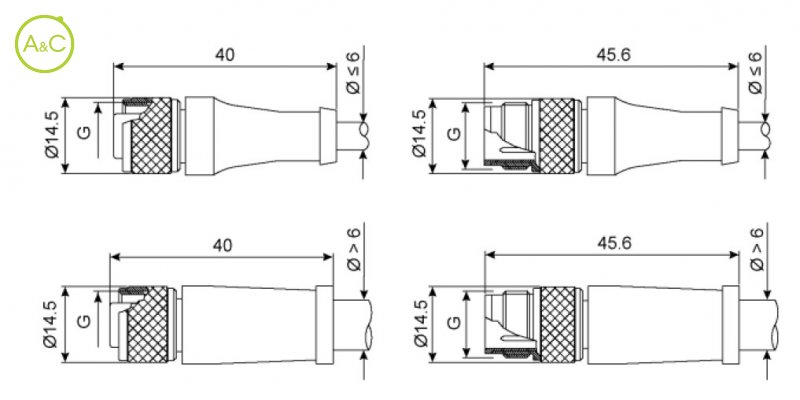

Female round connector

Do you have any questions about this product?

Download product sheet

More info on this brand:

Article Number	RCLF 00335 414 3000
Number Of Contacts	3
Protection Degree	IP65*
Upper Temperature	90 °C
Lower Temperature	-40 °C
Housing Material	TPU
Circuits	without electronic
Housing Oil Resistance	Very good
Contact Material	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Housing Colour	Black
Contact Gender	F
Ground Pole	Yes
Max. Number Wires	3
Wire Colour	bn3, bu2, gn/ye-PE
Coding	C
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RCLF 00434 422 3000
Number Of Contacts	4
Protection Degree	IP65*
Upper Temperature	90 °C
Lower Temperature	-40 °C
Housing Material	TPU
Circuits	without electronic
Housing Oil Resistance	Very good
Contact Material	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Housing Colour	Black
Contact Gender	F
Ground Pole	Yes
Max. Number Wires	4
Wire Colour	bn1, bu3, bk2, gn/ye-PE
Coding	C
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RCLF 00536 309 3000	RCLF 00636 311 3000
Number Of Contacts	6	6
Protection Degree	IP65*	IP65*
Upper Temperature	90 °C	90 °C
Lower Temperature	-40 °C	-40 °C
Housing Material	TPU	TPU
Circuits	without electronic	without electronic
Housing Oil Resistance	Very good	Very good
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Locking Nut Material	Brass nickel plated	Brass nickel plated
Voltage Vdc	1 to 60	1 to 30
Voltage Vac	1 to 60	1 to 30
Max. Currrent	2 A @40°C	2 A @40°C
Housing Colour	Black	Black
Contact Gender	F	F
Ground Pole	Yes	Yes
Max. Number Wires	5	6
Wire Colour	bn1, wh2, bu5, bk4, gn/ye-PE	bn1, wh2, bu5, bk4, gy6, gn/ye-PE
Coding	C	C
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Characteristics differ between variants of a connector
