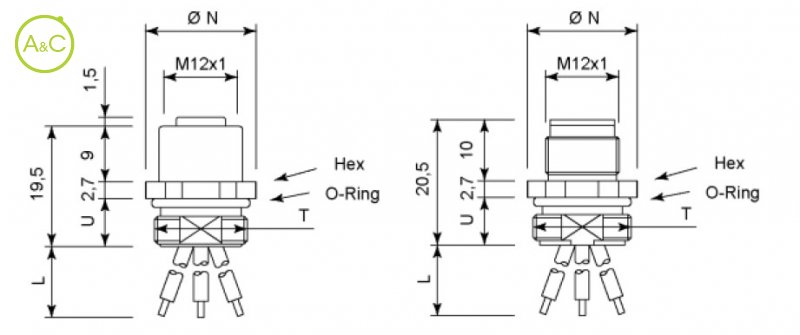

Female round receptacle

RDE - RDEF 00300

RDE - RDEF 00300

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

3
4
5
8
12

Article Number	RDEF 00300 2A1 0200 000
Number Of Contacts	3
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	3
Wire Colour	bn1, bu3, bk4
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDEF 00400 2A1 0200 000
Number Of Contacts	4
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	4
Wire Colour	bn1, wh2, bu3, bk4,
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDEF 00500 2A1 0200 000	RDEF 00530 2A1 0200 000
Number Of Contacts	5	5
Protection Degree	IP67 (only frontal side)*	IP67 (only frontal side)*
Upper Temperature	+80 °C	+80 °C
Lower Temperature	-40 °C	-40 °C
Fixing Thread	M16	M16
Housing Material	Nickel plated brass	Nickel plated brass
Contact Material	Golden over nickel plated CuZn	Golden over nickel plated CuZn
Voltage Vdc	1 to 60	1 to 60
Voltage Vac	1 to 60	1 to 60
Max. Currrent	4 A @40°C	4 A @40°C
Contact Gender	F	F
Ground Pole	No	Yes
Max. Number Wires	5	5
Wire Colour	bn1, wh2, bu3, bk4, gy5	bn1, wh2, bu3, bk4, gn/ye5
Coding	A	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDEF 008A0 2A2 0200 000
Number Of Contacts	8
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	2 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	8
Wire Colour	din 47100 #1
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDEF 012C1 2A2 0200 000
Number Of Contacts	12
Protection Degree	IP67 (only frontal side)*
Upper Temperature	+80 °C
Lower Temperature	-40 °C
Fixing Thread	M16
Housing Material	Nickel plated brass
Contact Material	Golden over nickel plated CuZn
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	1,5 A @40°C
Contact Gender	F
Ground Pole	No
Max. Number Wires	12
Wire Colour	din 47100 #3
Coding	A
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Characteristics differ between variants of a connector
