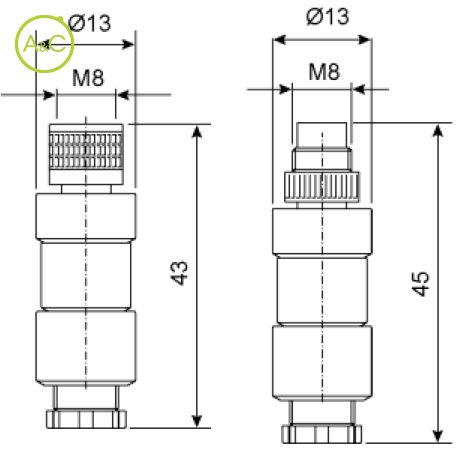

Female round connector
Do you have any questions about this product?
More info on this brand:
Shield
Shield
Number Of Poles
- 3
- 4
| Article Number | REJF 00310 070 | REJF 00311 070 |
| Number Of Contacts | 3 | 3 |
| Protection Degree | IP67* | IP67* |
| Upper Temperature | +90 °C | +90 °C |
| Lower Temperature | -25 °C | -25 °C |
| Cable Diameter | 3,5-5 mm | 3,5-5 mm |
| Housing Material | PA66 30%GF | PA66 30%GF |
| Housing Oil Resistance | Very good | Very good |
| Contact Material | Golden over nickel plated CuZn | Golden over nickel plated CuZn |
| Max. Wire Section | 0,5 mm² | 0,25 mm² |
| Locking Nut Material | Metal nickel plated | Metal nickel plated |
| Voltage Vdc | 1 to 60 | 1 to 60 |
| Voltage Vac | 1 to 60 | 1 to 60 |
| Max. Currrent | 3 A @40°C | 3 A @40°C |
| Contact Gender | F | F |
| Ground Pole | No | No |
| Max. Number Wires | 3 | 3 |
| Coding | A | A |
| Cabling System | Screw vite | Solder |
| Remark* | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart |
Characteristics differ between variants of a connector
