Contact 30 to 28 AWG
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- AWG 30 to 28
| Article Number | SACHL-003G-P0.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.2mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.05 to 0.08 (AWG #30 to #28) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.20 mm |
| Rated Current (ac/dc) | 2 (WG #28) A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

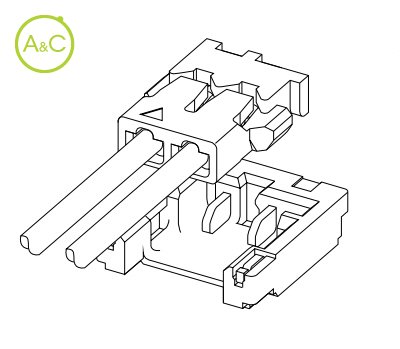

This connector has a stacking height of 1.2mm and pitch of 1.2mm.
In addition, in spite of being a compact and low profile connector, rated current is 2A with wire size AWG#28.
It is possible to use the same crimping tool and applicator that is used for the ACH Connector.
Top entry but side feed type
Connector for power supply
Corresponding to sucking nozzle of pick and place machine
RoHS Compliant
