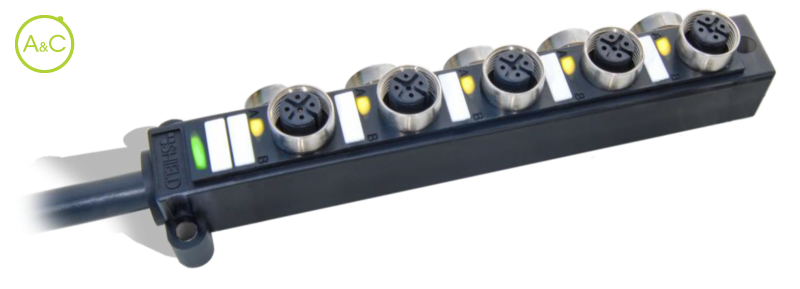

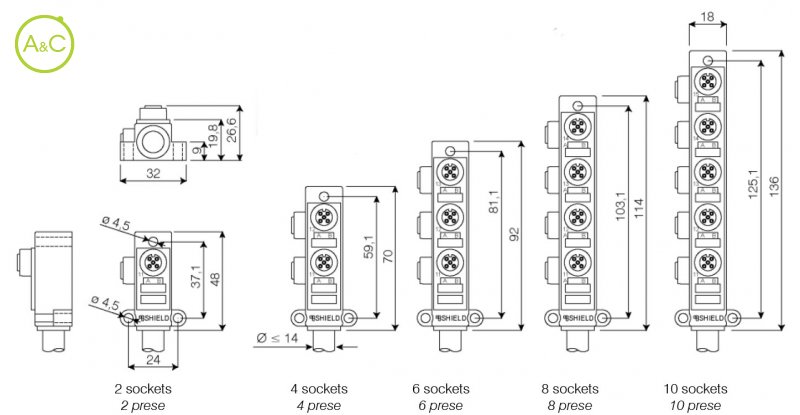

Angled, double line, L-left profile, from 2 to 10 sockets, 1 signal each socket

With LED

SD40 - SD401N7 06130

SD40 - SD401N7 06130

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Socket Quantity

2
4
6
8
10

Article Number	SD401N7 06130 547 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD402N7 06130 839 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD403N7 06130 837 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD404N7 06130 843 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Article Number	SD405N7 06130 872 5000
Number Of Contacts	5
Protection Degree	IP65*
Upper Temperature	+70 °C
Lower Temperature	-25 °C
Housing Material	TPU
Circuits	With LED
Housing Oil Resistance	Very good
Contact Material	Nickel & golden plated CuZn
Locking Nut Material	Brass nickel plated
Voltage With Pollution Degree 3 Vdc **	10 to 30
Max. Currrent	8 A for common wires, 4 A each socket, 2 A each signal A @40°C
Control Type	Cable
Coding	A
Connected Terminals	1= V+, 3= V-, 4= A signal, 5= ground
Remark*	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark**	The allowed voltage depends also from the pollution degree of the working environment, therefore by the contamination risk of gaseous, liquid or solid foreign matter 2= only non-conductive pollution and occasionally tempory condensation, 3= wet or dry conductive pollution

Characteristics differ between variants of a connector
