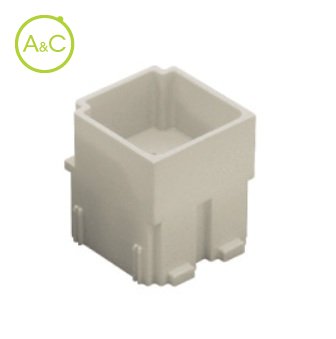

Housing for RJ45 connectors
Do you have any questions about this product?
More info on this brand:
Ilme
Ilme
- General
| Article Number | CX 01 JF* |
| Pollution Degree | 3 |
| Number Of Poles | 4 |
| Connection Type | Crimp connection |
| Contact Type | Female |
| Remark* | Female inserts can onlu be used on high or flush mounting enclosures |
| Required Crimp Contacts | CDFA 0.3, CDFA 0.5, CDFA 0.7, CDFA 1.0, CDFA 1.5, CDFA 2.5, CDFD 0.3, CDFD 0.5, CDFD 0.7, CDFD 1.0, CDFD 1.5, CDFD 2.5, CDF2D 0.3, CDF2D 0.5, CDF2D 0.7, CDF2D 1.0, CDF2D 1.5, CDF2D 2.5, CDFJD 0.3, CDFJD 0.5, CDFJD 0.7, CDFJD 1.0, CDFJD 1.5, CDFJD 2.5 |
| Extra Information | Contact insert without contacts |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 120 °C |
| Diameter Male Contact | 1.6 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 10 A |
| Nominal Rated Voltage | 250 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 4 kV |
Characteristics differ between variants of a connector
