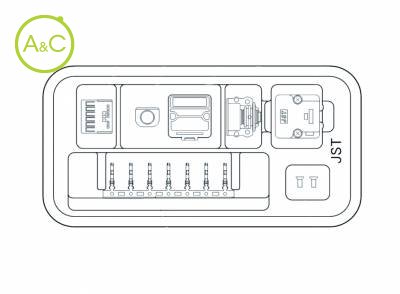

Receptacle Contact AWG 28 to 16

JFA CONNECTOR J3700 Series

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Applicable Wire

AWG 20 to 16
AWG 24 to 20
AWG 28 to 24

Article Number	SJ3F-41GF-P1.8
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	3.8mm Pitch Connector Kit for Motor
Applicable Wire Size	0.5 to 1.25 (AWG #20 to #16) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	3.8 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	250 V
Remark*	Waterproof

Article Number	SJ3F-01GF-P1.8
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	3.8mm Pitch Connector Kit for Motor
Applicable Wire Size	0.20 to 0.5 (AWG #24 to #20) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	3.8 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	250 V
Remark*	Waterproof

Article Number	SJ3F-002GF-P1.8
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	3.8mm Pitch Connector Kit for Motor
Applicable Wire Size	0.08 to 0.20 (AWG #28 to #24) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	3.8 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	250 V
Remark*	Waterproof

Characteristics differ between variants of a connector

6 Circuit connector for power supply of servomotor. This connector is supplied in kits, including all components. Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5) Standards UL Recognized E60389 RoHS Compliant
