Female Terminal AWG 22 to 20

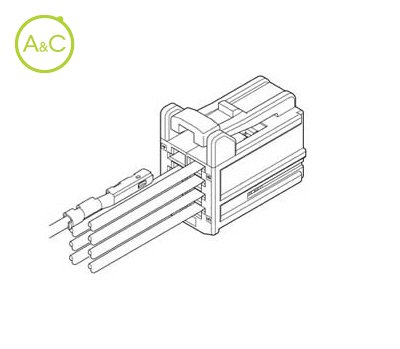

  • NAC-I CONNECTOR
Download product sheet

Applicable Wire

  • AWG 22 to 20
Article Number SNAC-A03T-M040
Upper Temperature +85 °C
Lower Temperature -40 °C
General Description Disconnectable Crimp Style
Applicable Wire Size 0.3 to 0.5 (AWG #22 to #20) mm²
Connection Type Automotive
Pitch / Style 2.54 mm
Rated Current (ac/dc) 5 A
Rated Voltage (ac/dc) 14 V
Characteristics differ between variants of a connector
Low profile dual row connector compliant with the USCAR performance specifications. For general automotive applications. Compact design, Independent secondary lock (Terminal Position Assurance) Accept 0.64 to 1.2mm Blade 2x4 circuit design Standards USCAR RoHS Compliant
