Socket Contact AWG 28 to 20

XAD CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Applicable Wire

General
AWG 24 to 20
AWG 26 to 22
AWG 28 to 22

Article Number	BH02B-XMSK	BH03B-XMSK	BH04B-XMSK	BH05B-XMSK	BH06B-XMSK	BH07B-XMSK	BH08B-XMSK	BH09B-XMSK	BH10B-XMSK
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device

Article Number	SXA-01T-P0.6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	0.22 to 0.50 (AWG #24 to #20) mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device

Article Number	SXA-001T-P0.6L
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	0.13 to 0.33 (AWG #26 to #22) mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device

Article Number	SXA-001T-P0.6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Applicable Wire Size	0.08 to 0.33 (AWG #28 to #22) mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Remark*	Secure locking device

Characteristics differ between variants of a connector

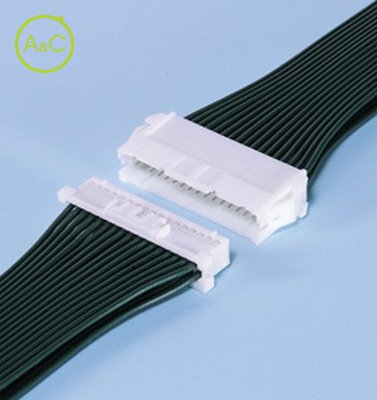

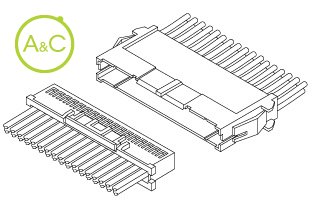

2.5mm (.098") pitch grid (dual in row) wire to wire connector that can mate with the socket of XAD connector (board-to-wire type). Possible to mate with the existing XAD socket The wire-to-wire connection with the existing XAD socket is possible. Inner type contact lance Inner type contact lance with stabilizer function provides stable contact retention force without deformation of the lance, and clear click feeling towards housing. Mountable on a variety of panels Possible to mount on panels of 0.5mm (.020") to 2.0mm (.079") thick. The design prevents from reverse mating and wire tangling toward panel section. Secure lock construction Secure lock construction prevents accidental diSConnection because of routing of wires or of vibration, and also reverse and different circuit numbers mating. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
