Top Entry Header THT

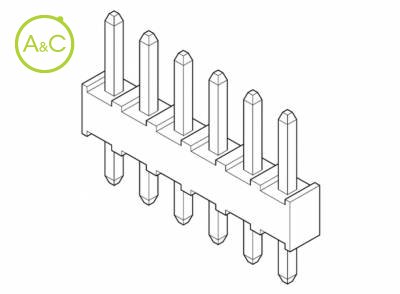

- 2.54SB HEADER
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
| Article Number | T2B-SQ |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T3B-SQ |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T4B-SQ |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T5B-SQ |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T6B-SQ |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T7B-SQ |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T8B-SQ |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T9B-SQ |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T10B-SQ |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T11B-SQ |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T12B-SQ |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T13B-SQ |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T14B-SQ |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T15B-SQ |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T16B-SQ |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T17B-SQ |
| Number Of Contacts | 17 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T18B-SQ |
| Number Of Contacts | 18 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T19B-SQ |
| Number Of Contacts | 19 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Article Number | T20B-SQ |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.54mm Pitch Header |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
Characteristics differ between variants of a connector

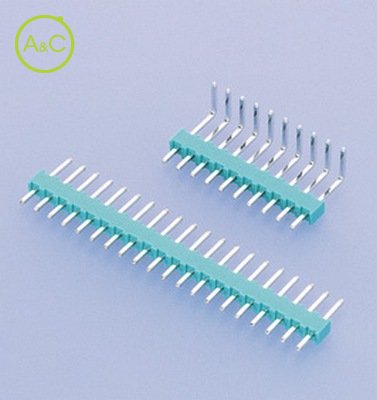

The 2.54mm (.100") pitch SB headers can be used to directly interconnected printed circuit boards.
They come in both straight and right angle models.
2.5mm (.098") pitch SB headers are also available. In addition, 2.0mm (.079") pitch BC headers are available.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
