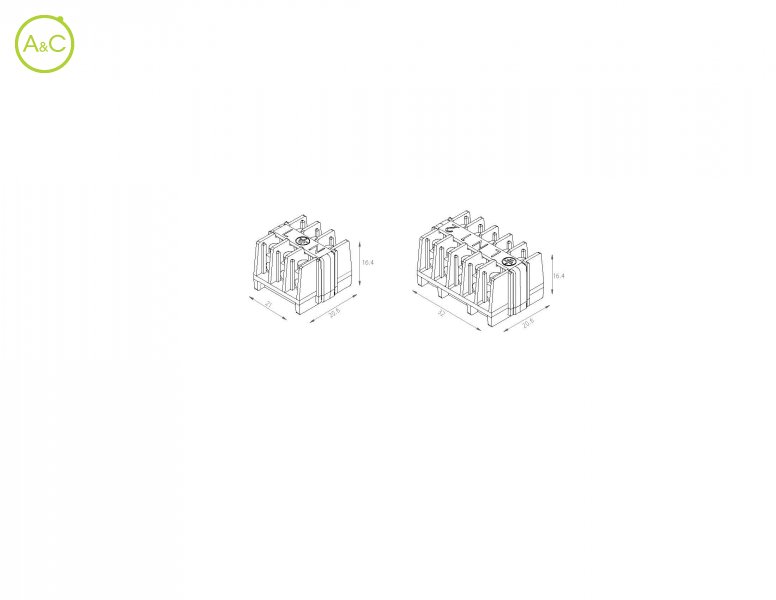

Compact linear terminal block

PPS V0 200°C

THB.026.C1B

THB.026.C1B

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

2
3
5

Article Number	THB.026.C1B	THP.026.C1B	THB.026.C2B
Number Of Contacts	2	2	2
Protection Degree	IP00	IP00	IP00
Upper Temperature	+200 °C	+200 °C	+200 °C
Lower Temperature	-40 to +200 °C	-40 to +200 °C	-40 to +200 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	STD contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Srew	Piercing	Srew
Cable Section	max 4,0 mm²	0,5 -1,5 mm²	max 2,5 mm²
T Marking	T200 °C	T200 °C	T200 °C
Protection Degree Details	can install inside TEEBOX	can install inside TEEBOX	can install inside TEEBOX
Tracking Index	PTI 175	PTI 175	PTI 175
Terminal Block Housing	PPS UL94 V0 black	PPS UL94 V0 black	PPS UL94 V0 black
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.026.B1B	THP.026.B1B	THB.026.B2B
Number Of Contacts	3	3	3
Protection Degree	IP00	IP00	IP00
Upper Temperature	+200 °C	+200 °C	+200 °C
Lower Temperature	-40 to +200 °C	-40 to +200 °C	-40 to +200 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	STD contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Srew	Piercing	Srew
Cable Section	max 4,0 mm²	0,5 -1,5 mm²	max 2,5 mm²
T Marking	T200 °C	T200 °C	T200 °C
Protection Degree Details	can install inside TEEBOX	can install inside TEEBOX	can install inside TEEBOX
Tracking Index	PTI 175	PTI 175	PTI 175
Terminal Block Housing	PPS UL94 V0 black	PPS UL94 V0 black	PPS UL94 V0 black
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Article Number	THB.026.A1B	THP.026.A1B	THB.026.A2B
Number Of Contacts	5	5	5
Protection Degree	IP00	IP00	IP00
Upper Temperature	+200 °C	+200 °C	+200 °C
Lower Temperature	-40 to +200 °C	-40 to +200 °C	-40 to +200 °C
Rated Voltage	450	450	450
Rated Current	32 A	17.5 A	24 A
Contact Terminal	STD contact	Piercing clip terminals max 1,5 mm²	WP contact for cable section < 1,0 mm²
Terminals	Srew	Piercing	Srew
Cable Section	max 4,0 mm²	0,5 -1,5 mm²	max 2,5 mm²
T Marking	T200 °C	T200 °C	T200 °C
Protection Degree Details	can install inside TEEBOX	can install inside TEEBOX	can install inside TEEBOX
Tracking Index	PTI 175	PTI 175	PTI 175
Terminal Block Housing	PPS UL94 V0 black	PPS UL94 V0 black	PPS UL94 V0 black
Contact Screw Terminals	Brass nickel plated	Brass nickel plated	Brass nickel plated
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated	M3 steel zinc plated
Standards	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004	EN60998-1:2004 EN60998-2-1:2004

Characteristics differ between variants of a connector
