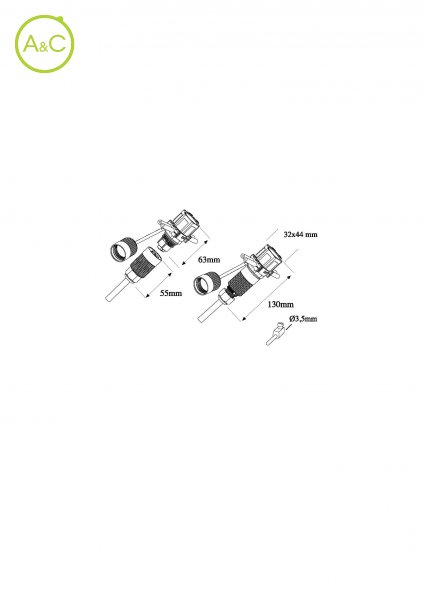

Pin crimp power socket piercing clip connector
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Number Of Poles
- 2
| Article Number | THB.370.A2A |
| Number Of Contacts | 2 |
| Protection Degree | IP65 |
| Upper Temperature | +125 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 400 |
| Pollution Degree | 2 |
| Rated Current | 10 A |
| Contact Terminal | Piercing clip terminal |
| Terminals | Piercing |
| Cable Section | 0,5 - 1,5 mm² |
| Min-max Cable Diameter | max 7,0 (cable to be pierced) / 7,0 - 12,0 mm |
| T Marking | T85 °C |
| Impulse Withstand Category | II |
| Impulse Withstand Voltage | 4 kV |
| Tracking Index | PTI 175 |
| Lock Nuts | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Connector Housing | PA66 UL94 V0/V2 GWT 960°C black - grey RAL 7035 |
| Terminal Block Housing | PA66 GF UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE |
| Seals | SEBS |
| Contact Screw Terminals | Brass nickel plated |
| Standard / Piercing Screws | M3 steel zinc brass plated |
| Standards | TEST REPORT EN60529:1991+A1:2000 IP65:12.5 L/min x 3 min EN60998-1:2004 HEATING RESISTANCE |
Characteristics differ between variants of a connector
