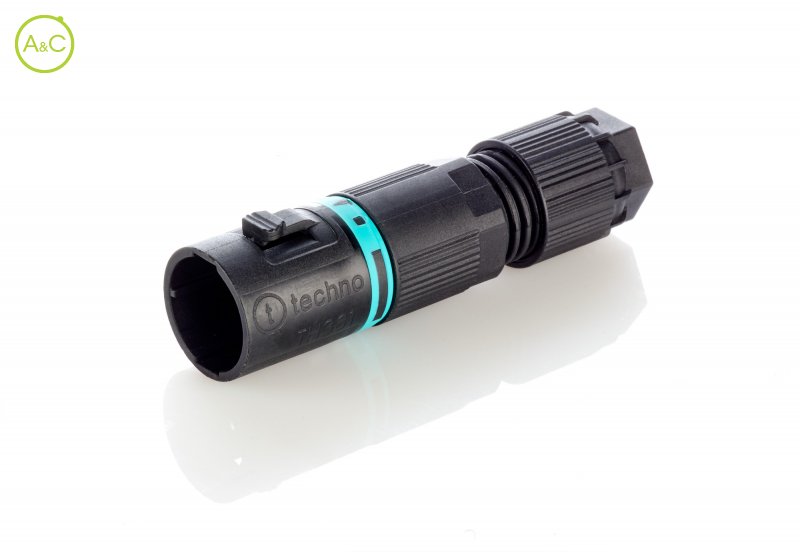

IP68 plug micro-connector
Do you have any questions about this product?
More info on this brand:
Techno
Techno
Number Of Poles
- 2
| Article Number | THB.381.A2A | THB.381.A2A.L |
| Number Of Contacts | 2 | 2 |
| Protection Degree | IP68 | IP68 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 400 | 400 |
| Pollution Degree | 2 | 2 |
| Rated Current | 10 A | 10 A |
| Terminals | Screw | Screw |
| Cable Section | 0,25 - 1,0 mm² | 0,25 - 1,0 mm² |
| Min-max Cable Diameter | 5,8 - 6,9 mm | 7,0 - 8,0 mm |
| Protection Degree Details | 30m/1h | 30m/1h |
| Impulse Withstand Category | II | II |
| Impulse Withstand Voltage | 4 kV | 4 kV |
| Tracking Index | PTI 175 | PTI 175 |
| Cable Glands | PA66 GF UL94 V2 - GWT 850°C | PA66 GF UL94 V2 - GWT 850°C |
| Co-moulded Seals | TPE-S | TPE-S |
| Contact Screw Terminals | Silver plated brass | Silver plated brass |
| Screw | zinc-plated | zinc-plated |
| Standards | EN61984:2009 | EN61984:2009 |
Characteristics differ between variants of a connector
