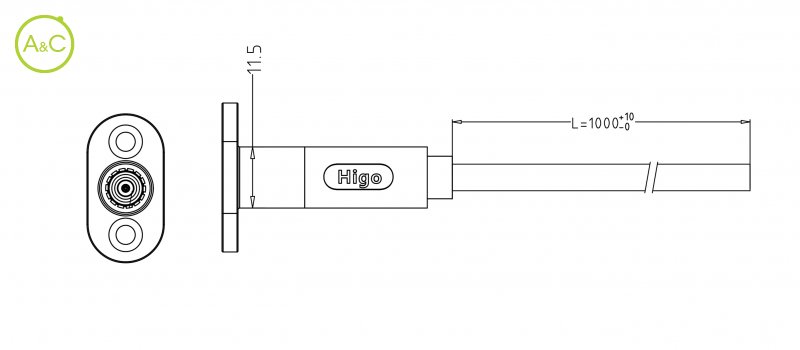

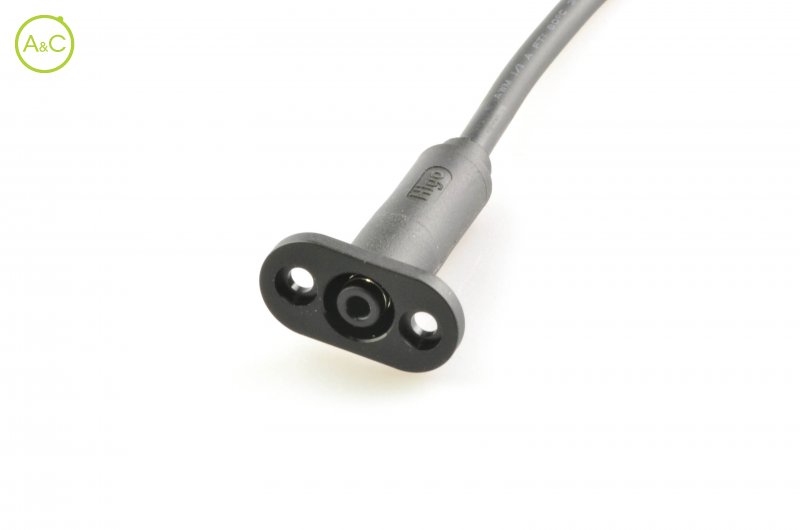

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Higo
Higo
Number Of Poles
- 2
| Article Number | Z212AM P 00 BW 1000 |
| Color | Black |
| Connector Diameter | 11.5 mm |
| Wire Section | 2 x 18AWG mm² |
| Cable Length | 1000 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Phosphor Bronze |
| Insulation Wire | PVC |
| Remark | Other cable length/type on request |
| Rated Current | 8 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
| Fitting Length | 30 mm |
| Material Jacket | TPU |
Characteristics differ between variants of a connector
