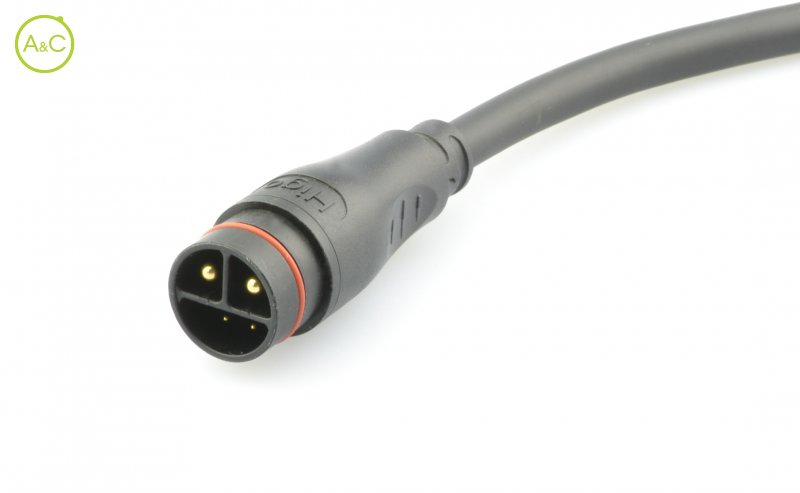

Male plug connector
Do you have any questions about this product?
More info on this brand:
Higo
Number Of Poles
- 7 (2+5)
Article Number | Z718AG P 00 GG 1000 |
Color | Black |

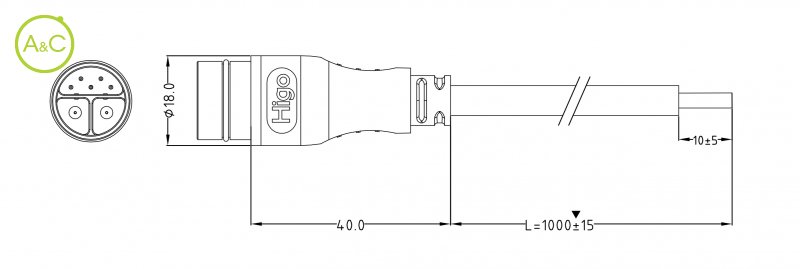

Connector Diameter | 18 mm |
Wire Section | 2 x 2,5 + 5 x 0,2 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 3000 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Brass |
Cable Diameter | 6.8 mm |
Insulation Wire | Teflon |
Remark | Other cable length/type on request |
Rated Current | 25 / 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold |
Fitting Length | 50 mm |
Material Jacket | PVC |
Characteristics differ between variants of a connector
