Receptacle AWG#32 Natural
- SUR CONNECTOR
Avez-vous des questions sur ce produit?
Plus d’infos sur cette marque:
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 15
- 16
- 17
- 20
- 22
Article Number | 02SUR-32S |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 03SUR-32S |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 04SUR-32S |
Number Of Contacts | 4 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 05SUR-32S |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 06SUR-32S |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 08SUR-32S |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 10SUR-32S |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 12SUR-32S |
Number Of Contacts | 12 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 14SUR-32S |
Number Of Contacts | 14 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 15SUR-32S |
Number Of Contacts | 15 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 16SUR-32S |
Number Of Contacts | 16 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 17SUR-32S |
Number Of Contacts | 17 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 20SUR-32S |
Number Of Contacts | 20 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Article Number | 22SUR-32S |
Number Of Contacts | 22 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 0.8mm Pitch Disconnectable IDC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 0.80 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 30 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Les propriétés diffèrent selon les variantes et sous-variantes

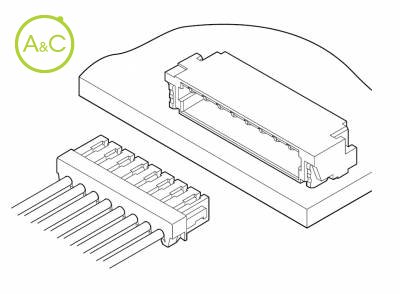

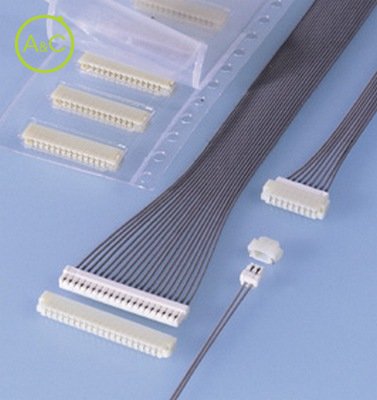

The worlds first 0.8mm (.031") pitch wire-to-board insulation displacement connector.
Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum pick and place equipment.
3-point grip construction
The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage.
Super fine wires are applicable
Applicable wire is of AWG #32 with only 0.38mm (0.15") O.D. With this super fine wire, routing of wires is easy.
Shrouded header
The header is fully shrouded, but remains thin.
Twin U-slot insulation displacement section
The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
